Typical Applications

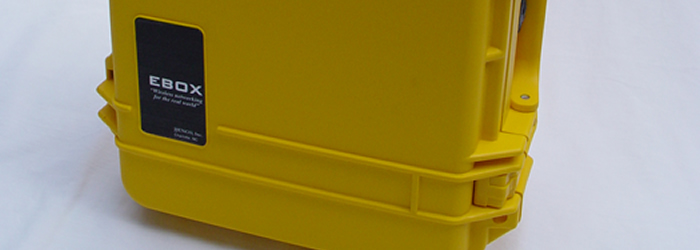

EBOX Custom Weatherproof Electronics Enclosures

With the increase in wireless networking applications, a need has arisen for an inexpensive, weatherproof electronics enclosure that can be easily customized and adapted to house a variety of electronics packages for different applications. To meet this need, JJENCO offers the EBOX, based upon proven Pelican-style case technology. The EBOX is a custom-configured electronics package designed and tested to meet invidiual client requirements.

We typically begin with a standard Pelican case made from a Ultra High Impact structural copolymer. These cases are lockable, watertight, dustproof, chemical resistant and corrosion proof. Its 1/4" (6.4 mm) neoprene o-ring and ABS latches seal perfectly and includes an automatic purge valve for quick equalization after changes in atmospheric pressure. This case is NATO codified and tested to MIL C-4150J (Military Standard), IP-67 (Ingress Protection). Cases are available in a range of sizes and colors to meet individual specifications.

Our basic EBOX is based upon the versatile Style 1450 Pelican case, in yellow ABS material. Inside dimensions are 14-13/16" x 10-3/8" x 6" (37.6 cm x 26.3 cm x 15.2 cm). Outside dimensions are 16" x 13" x 6-7/8" (40.6 cm x 33 cm x 17.4 cm). The lid depth is 1.75" (4.4 cm), while the overall case depth is 4.25" (10.8 cm). However, actual case selection will be based upon client configuration requirements.

The EBOX is typically configured with an RF antenna, and comes with either wall-mount or mast-mount attachment hardware, as specified. The basic EBOX container is of sufficient size to easily incorporate a power supply, electrical junction box, 802.11x wireless access point, or other similarly sized components. The yellow color minimizes unwanted internal heat gain in summer, while providing high-visibility that blends well with most environments. JJENCO will design and customize each EBOX to meet individual customer requirements, and deliver fully integrated electronics packages ready for installation and use.

Pricing is dependent upon a variety of factors, including case size, electronics configuration, and quantity.
